How many Mechanism-Editors can I add?

How many Mechanism-Editors/Tabs can I add?

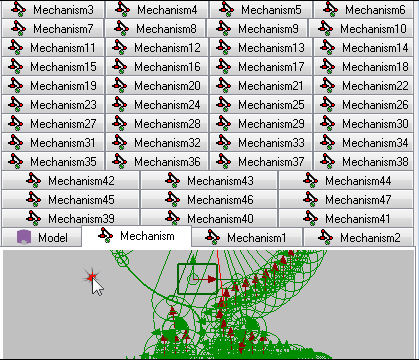

47 Mechanism Editors in one MechDesigner Model

You can add as many Mechanism-Editors and Tabs to as many Planes as you like.

It is possible to design complete machines in one Mechanism-Editor. Alternatively, you can model a machine with many Mechanisms Editors, each contributing a kinematic-chain.

The model to the left shows 47 Mechanism-Editors.
