How many Kinematic-Chains in a Mechanism-Editor?

How many Kinematic-Chains can I add to each Mechanism-Editor?

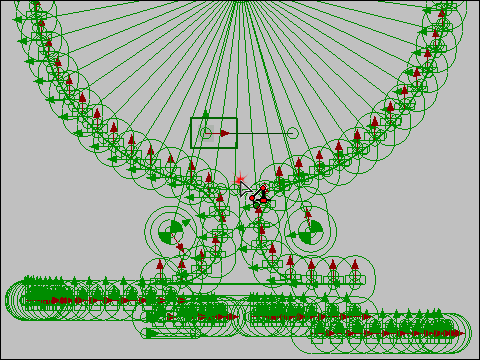

160 Kinematic-Chains in one Mechanism Editor.

You can add as many Kinematic-chains as you need to model your machine.  Within the capacity of your PC and RAM.

For example, in the image to the left, I have modeled 160 kinematic-chains on one Mechanism-Editor - all Sliders with a Motion
