MotionDesigner Reference & User Interface > SEGMENT EDITOR > Segment Editor: Y-axis Values / Control-Buttons

Two Motion-Values (for each Motion-Derivative).

The Segment-Editor controls motion-values at the:

•Start of the Selected-Segment Red-14-1

AND

•End of the Selected-Segment . Red-14-2

There are four motion-derivatives.

Therefore, you can control a total of eight(8) motion-values in each Segment.

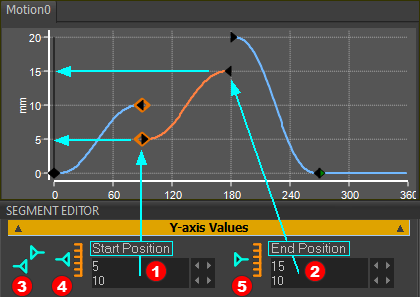

SEGMENT-EDITOR - Example Y-axis Value of Position only

Y-axis Values

Two Motion-Values Red-14-1 Red-14-2 (for each motion-derivative: Position, Velocity, Acceleration, and Jerk):

Start (motion-value of Motion-Derivative):

Start Position = 50mm

End (motion-value of Motion-Derivative):

End Position = 150mm

You can see the two motion-values in the position plot and in the Start Position Red-14-1 and End Position Red-14-2 data-boxes.

These data-boxes have two possible states: read-only or read-write

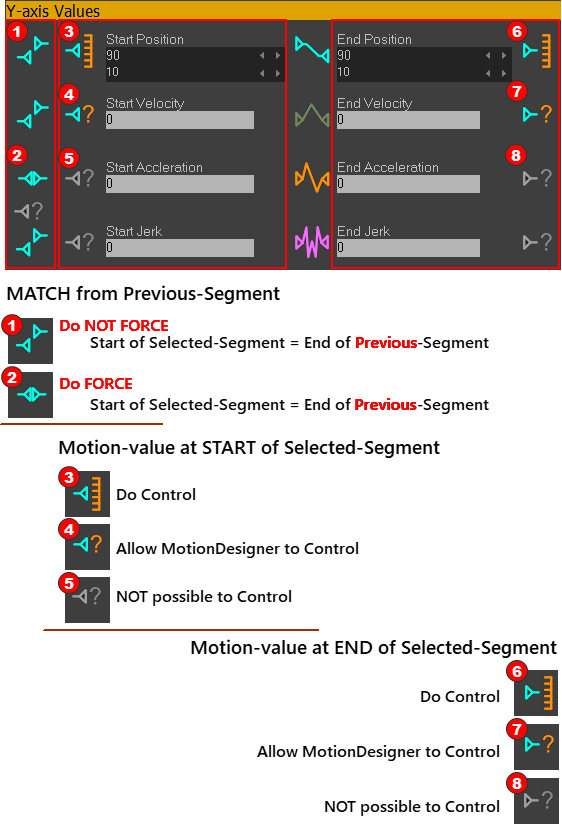

Control Buttons (for each Motion-Derivative) :

Start Control button - to control the motion-value at the Start of the Selected-Segment.

This button has three(3) possible states.

Do control (the motion-value at the) Start of the Selected-Segment

Do NOT control (the motion-value at the) Start of the Selected-Segment

Not possible to control (the motion-value at the) Start of the Selected-Segment

Match Control button - to control the flow and continuity of motion-values from the Previous-Segment to the Selected-Segment.

This button has two(2) possible states -

Do Force (motion-values at) Start of the Selected-Segment = End of the Previous-Segment

Do NOT Force (motion-values at) Start of the Selected-Segment = End of the Previous-Segment

End Control button - to control the motion-value at the End of the Selected-Segment.

It has three(3) possible states -

Do control (the motion-value at the) End of the Selected-Segment

Do NOT control (the motion-value at the) End of the Selected-Segment

Not possible to control (the motion-value at the) End of the Selected-Segment

Segment Editor: Y–axis Values
