The Filter and Display menus and toolbars

The Filter and Display toolbars are BELOW the graphic-area.

Use Filter Elements to help you select different element types
Use Display Elements to show or hide different element types.

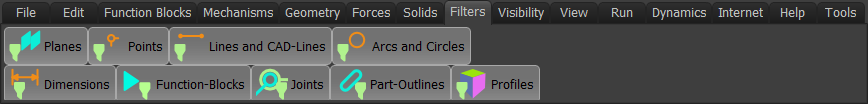

Filter and Display menus

Menu-Filters


Display Filters toolbar

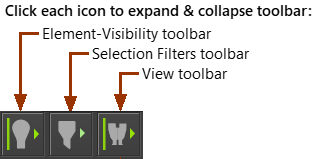

The Display toolbar is BELOW the graphic-area.

Toolbar-GeneralUse-DisplatFiltersOpen

Display Filters toolbar

Display Filters toolbar
[All filters Selected]

Display Filters icons

Icon-DispFilt-Planes

Remove Planes from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Planes

Note: the active Mechanism-Editor shows only those Planes that are children of it.

Icon-DispFilt-Axes

Remove Part Axes from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Axes

Icon-DispFilt-Parts

Remove Part-Outlines and Joints from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Part-Outlines

Icon-DispFilt-Points

Remove Points from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Points

Icon-DispFilt-Sketches

Remove Sketch-Elements from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Sketch-Elements

Icon-DispFilt-Profiles

Remove Profiles from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Profiles

Note: It is possible to select Profile elements in 'Other Sketch-Elements' when the 'Show Other Mechanisms' tool is used.

To select a Profile in another Mechanism-Editor is necessary (Add 3D-Cam), or inconvenient (Add Reference Geometry).

Icon-DispFilt-DXFCAD

Remove from the graphic-area display the CAD-Lines, all DXF Outlines and Solids that you have imported onto CAD-Lines.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display CAD-Lines

Icon-DispFilt-CADLine

Remove DXF Points in the DXF Drawings from the display. Other DXF Entities stay in the graphic-area.

DXF Points sometimes show at each end of each DXF Entity in a DXF Drawing that you have imported. If there are many DXF Points, for example every point around a Cam you have imported, they hide the underlying DXF Drawing.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display DXF-Points

Icon-DispFilt-Mecs

Remove Camlinks Outlines from the graphic-area display.

('Camlinks' was a 2D kinematics software package. MechDesigner has replaced it).

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Camlinks Outlines

Icon-DispFilt-FBs

Remove Function-Blocks, Input-Connectors and Output-Connectors from the graphic-area display.

Click this icon in the Display toolbar

- or -

Click Filters menu > Display Function-Blocks

Icon-DispFilt-Dims

Remove from the graphic-area:

- or -

Click Filters menu > Display Function-Blocks

Icon-DispFilt-GearPairs

Remove Gear-Pairs from the graphic-area display.

Click this icon in the Display toolbar

Icon-DispFilt-2DCams

Remove 2D Cams from the graphic-area display.

Click this icon in the Display toolbar

Icon-DispFilt-3DCams

Remove 3D-Cams from the graphic-area display.

Click this icon in the Display toolbar

Selection Filters Toolbar

The Selection toolbar is BELOW the graphic-area.

Toolbar-GeneralUse-SelectionFiltersOpen

The Filters toolbar is one of the 'general toolbars' below the graphic-area.

Selection Filters toolbar

Selection Filters toolbar
[All filter elements selected]

Selection Filters icons

Icon-SeleFilt-Planes

When selected, you can select Planes.

To Click a Plane in the Mechanism graphic-area, use the Show Model in mechanism tool.

Icon-SeleFilt-Parts

When selected, you can select Parts and BaseParts by clicking the Part-Outline

Note: The CAD-Line is NOT a Part.

Icon-SeleFilt-Points

When selected, you can select Points.

Icon-SeleFilt-Lines

When selected, you can select Lines and CAD-Lines.

Icon-SeleFilt-Circle

When selected, you can select Circles and Arcs.

Icon-SeleFilt-Dims

When selected, you can select Dimensions.

The Dimensions you can select include:

Dimensions in the Part-Editor
Measurement Dimensions and the Measurement FB in the Mechanism-Editor
Motion-Dimensions and the Motion-Dimension FB, Icon-FBinGA-MotDimSlider or Icon-FBinGA-MotDimRocker,, in the Mechanism-Editor

Icon-SeleFilt-Profiles

When selected, you can select Profiles.

Top-Tip: If the sketch-loop hides the Primary or Secondary contour, click the contour you can see.

Icon-SeleFilt-FBs

When selected, you can select Function-Blocks [but not Measurement FBs, and Motion-Dimension FBs]

Information32

Note: Use the Dimension Filter [See Above], Icon-SeleFilt-Dims, to filter Motion-Dimension,Icon-FBinGA-MotDimSlider  or, Icon-FBinGA-MotDimRocker

Icon-SeleFilt-Joints

When selected, you can select Joints.
