Selection-Filters

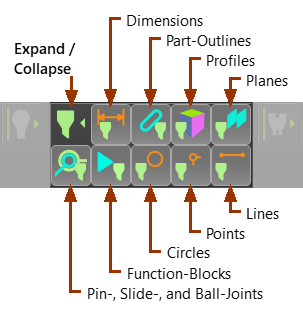

Selection Filters toolbar

The Selection Filters toolbar is BELOW the graphics-area.

Toggle a Filter to ON so that you

•can select that type of element in the graphics-area.

•can select and edit the type of element from the Assembly-Tree.

Special Case and default: Disable OR Enable ALL Filters to select ALL element-types.

Selection Filters toolbar

Selection Filters toolbar
[All filter elements selected]

Selection Filter icons

MD-Icon-SeleFilt-Planes

Filter for Planes

MD-Icon-SeleFilt-Parts

Filter for Part-Outlines (to select a Part).

MD-Icon-SeleFilt-Points

Filter for Points

MD-Icon-SeleFilt-Lines

Filter for Lines, CAD-Lines, X-axes, and Y-axes of a Part.

MD-Icon-SeleFilt-Circle

Filter for Circles and Arcs

MD-Icon-SeleFilt-Dims

Filter for Dimensions:

•Dimensions in the Part-Editor

•Measurement Dimensions and Measurement FBs in the Mechanism-Editor

•Motion-Dimensions and Motion-Dimension FBs in the Mechanism-Editor

MD-Icon-SeleFilt-Profiles

Filter for Profiles

MD-Icon-SeleFilt-FBs

Filter for Function-Blocks

MD-Icon-SeleFilt-Joints

Filter for Pin-Joints and Slide-Joints
