Motion-Law: Constant-Velocity

<< Click to Display Table of Contents >>

Navigation:  MotionDesigner Reference & User Interface > Motion Laws / Cam-Laws for Segments >

Motion-Law: Constant-Velocity

Constant-Velocity Cam-Law, Motion-Law

This is a Polynomial motion type.

See also : Constant-Velocity: Two Positions.

Motion-Description

The Velocity is constant for the period of the segment-width.

Motion-Values

You CAN control the:

Start-Position

The Start-Position usually flows from the End-Position of the Previous-Segment.

Start-Velocity

The Start-Velocity usually flows from the End-Velocity of the Previous-Segment

You CANNOT control the:

End-Position

The End-Position is a calculated from the Start-Position, Start-Velocity, and Segment-Width

End-Velocity

The End-Velocity is equal to its Start-Velocity

Start Acceleration = End-Acceleration = 0

Start-Jerk = End-Jerk = 0

Segment Parameters

None

Segment-Range

None

Example - Velocity Continuity

1.Use the Motion-Law Selector to change the motion-law of a segment to a Constant-Velocity.

2.Click above or below the segment in the motion-graphs.

The Constant-Velocity segment is now the Selected-Segment.

3.Open the Blend-Point Editor

MT-BPE-CB-DoFlow

1.Set the Match Control Button to Flow / Match - see image Red-14-3

The Velocity at the Start of the Selected-Segment is now forced to be equal to the Velocity at the End of the Previous-Segment.

The Start Velocity becomes read-only.

2.Edit the End VelocityRed-14-1b

You should see that the Start-VelocityRed-14-2 is equal to the End-Velocity.

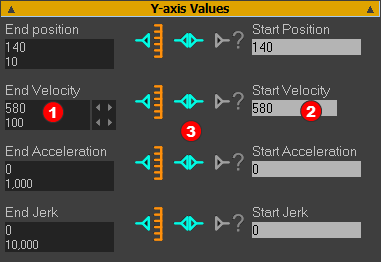

Blend-Point Editor: Velocity Equal at Blend-Point.

Blend-Point Editor: Velocity Equal at Blend-Point.

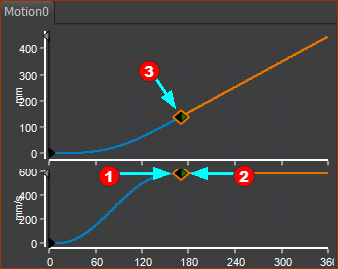

Smooth Flow of Velocity at Blend-Point Equal Gradients of Position Graph at Blend-Point

Smooth Flow of Velocity at Blend-Point
Equal Gradients of Position Graph at Blend-Point

Example 2 - VELOCITY DIS-CONTINUITY

Definition of a Motion Dis-continuity:

The motion-values change instantly, such that there is a step between two adjacent motion-values. The motion-discontinuity is associated with a motion-derivative. E.g.: A motion has a Velocity discontinuity

A Velocity discontinuity is not recommended, of course. There is infinite acceleration at the Velocity discontinuity - which is mechanically not possible. A Velocity discontinuity puts a kink in the Position graph.

An example of a Velocity Dis-Continuity.

1.Use the Motion-Law Selector to change a motion-law of a segment to a Constant-Velocity.

2.Click above or below the segment in the motion-graphs.

The Constant-Velocity segment is now the Selected-Segment.

3.Open the Blend-Point Editor

MT-BPE-CB-DoNotFlow

4.Set the Match Control-Button to Do Not MatchRed-14-3

5.Enter a Start-VelocityRed-14-2 value that is not equal to the End-VelocityRed-14-1b value.

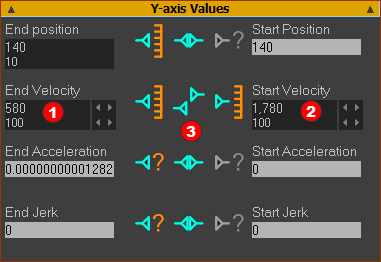

Blend-Point Editor: Velocities at Blend-Point are not Equal

Blend-Point Editor: Velocities at Blend-Point are not Equal

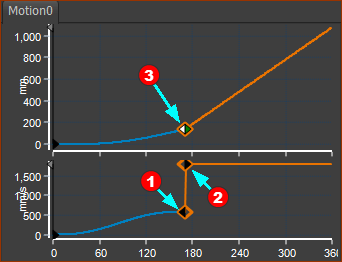

Step in Velocity Graph, & Kink(corner) in Position Graph. Step in gradient at Blend-Point in Position-Graph.

Step in Velocity Graph, & Kink(corner) in Position Graph.
Step in gradient at Blend-Point in Position-Graph.
