Motion-Value Evaluator

<< Click to Display Table of Contents >>

Navigation:  MotionDesigner Reference & User Interface > Motion toolbar >

Motion-Value Evaluator

Motion-Values Evaluator

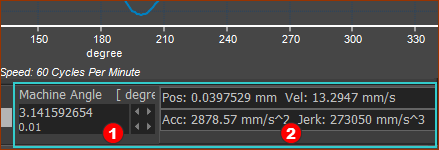

MT-EvaluatedMotionValues

To evaluate Motion-Values at a Machine-Angle

1.Edit the Machine-AngleRed-14-1b to any real value

2.The Position, Velocity, Acceleration, and Jerk motion-values are evaluatedRed-14-2

Note:

The evaluated motion-values (Red-14-2) are the exact motion-values at Machine-Angle (Red-14-1) .

The Machine-Angle can be set to any angle.


See also: Motion-Values at Pointer, Sweep-Display
