Active Motion Settings

Th Active Motion Settings dialog is in the Edit toolbar. Edit the parameters in the dialog to configure the active motion.

We save the parameters each time you save a model and each time you exit MechDesigner.

It is a good idea to check these settings before you start to design a motion.

Active Motion Settings

Edit Toolbar : Active Motion Settings

Edit toolbar > Active Motion Settings

Each motion can have different settings.

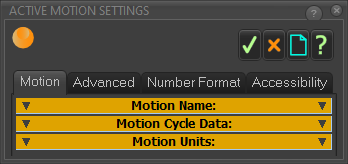

Active Motion Settings dialog

Active Motion Settings dialog

There are four tabs:

•Motion

•Advanced

•Number-Format

•Accessibility
tog_minusMotion tab
Motion name-tab (read-write)

Motion name-tab (read-write)

Motion Name

Motion Name (read-write) (default = Motion0, Motion1, ... )

Enter a new Motion Name with your keyboard.

Then press the ENTER key.

The new Motion-Name is now in the Motion name-tab.
MT-AppSettings-Motion-Cycledata

Motion Cycle Data

Number-of-POINTS (read-write) ( default = 360)

The number-of-points along the active motion graph.

Note:

Enter Number-of-Points = 361 to give an data value on each integer machine degree when you download the motion to the Data Transfer Table.

RPM [ Cycles/Min ] (read-only)

RPM : Machine cycles per minute.

See: MechDesigner - Edit menu>Machine Settings>Cycling Parameters>Cycles/Min

Seconds / Cycle ( read-only )

Seconds / Cycle = 60 / Cycles/Min

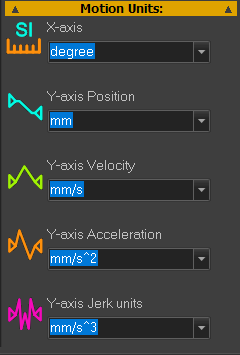

MT-AppSettings-Motion-Yunits

Motion Units

X–axis Units: ( default = degrees )

Units available: counts, sec, msec, cycle, degree, radian.

Y–axis Units: ( default = degrees or mm )

Units available: mm, cm, m, inch, degree, radian, cycle, counts

Position :

Units

Velocity :

Units/s

Acceleration :

Units/s2

Jerk :

Units/s3

Note:

If you change the Y-axis values from Angular Units to Linear Units, then 1º = 1mm.

The physical values in the motion-graphs does not change if you select a different a Linear unit or Angular unit.

E.g. 90 mm becomes 0.090 m, or 3.54 3inches; 1 degree becomes 0.01745 radians.
tog_minusAdvanced tab
MT-AppSettings-Advanced-X

X-axis Parameters

[UNITS] at Start ( default = 0 )

Edit Unit data-type in Motion tab > Motion Units

MT-AppSettings-Advanced-Y

Y-axis Parameters

Counts / Degree ( default =1 )

Edit Unit data-type in Motion tab > Motion Units

Counts at Start ( default = 0 )

Edit Unit data-type in Motion tab > Motion Units

tog_minusNumber Format tab
MT-AppSettings-NumFormat

Number Format

Format ( default : General )

See Number Format



Precision (default = 15 )

See Precision

Digits (default = 10 )

See Digits

tog_minusAccessibility tab
MT-AppSettings-Access-Colors

Colors

☑Show Grid : Enable to show the horizontal and vertical grid lines in the graph-plot area.

Colors : edit with Windows Color Picker® :

•Line: of all segments, but not the Selected-Segment

•Grid: the horizontal and vertical Grid-Lines

•Axis Color : X and Y-axis text

•Background: the graph area

•Selected: the Selected-Segment (typically Red)

•Overlay: see Overlay-Trace
MT-AppSettings-Access-Line

Line and Symbol Sizes

Line Thickness (default = 1 ; Maximum  = 8 )

The plot thickness, in pixels, of the motion segments

Symbol Size (default = 2 ; Maximum = 8 )

The scale/size of the Blend-Point symbols
