Modelling Function-Blocks

Modelling Function-Blocks are utilities and tools that each have an interface for more complex modelling.

Maths FB, Statistics FB : to define functions that are not otherwise available; to analyse functions
Point-Cloud FB : to reverse-engineer cams, often used with the Magnetic-Joint FB
Design-Sets FB : to edit groups of dimensions and parameters, to help optimize mechanisms
Patterning FB : to model solids as space or phase shifting patterns
Parameter Control FB : to control a Static-Dimension or Extrusion Depth with a motion or other Kinematic FB.

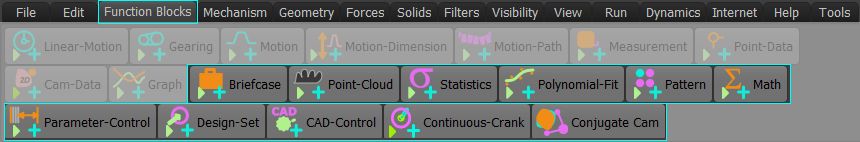

Modelling FB Menu (Add menu)

Menu--Modelling-FB

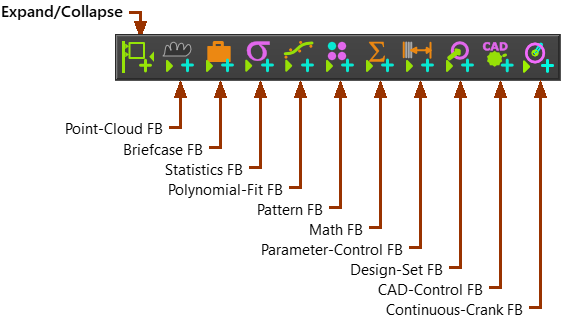

Modelling FB toolbar

The Modelling Function-Block toolbar is above the graphic-area.

Toolbar-Modelling-FBs
